Compressed Air Flow Meter Portable: Handheld Field CFM Logging Inspections
Quick Answer
A portable thermal mass flow meter gives direct CFM or Nm3/h readings on compressed air lines without cutting the pipe. It works for compressor audits, branch line checks, and leak surveys. Send us your pipe size (DN), pressure (bar), temperature (°C), and expected flow range. We will recommend a handheld CFM logging kit from Silver Instruments.
Compressed air is not free. A 2 mm leak at 7 bar can cost over USD 2,500 per year. Many plants in Vietnam, Indonesia, and Saudi Arabia run fixed flow meters on main headers. But what happens when you need to check a branch line or a single drop. A fixed meter cannot move. That is why portable CFM logging kits are now common in maintenance trucks and audit kits.
What the Handheld Meter Measures
The Silver Instruments portable compressed air flow meter uses a thermal mass sensor. Two PT100 probes are inserted into the pipe through a ball valve. One probe is heated. The other measures gas temperature. The electronics track how much heat the air removes. That value changes with mass flow, not just velocity.
Because mass flow is the direct output, the display can show CFM, SCFM, Nm3/h, kg/h, and total flow. A pressure transmitter input is available on some models. With pressure input, the meter corrects density in real time. This gives you standard volumetric flow even when line pressure changes during the test.
Common Field Applications
We see portable compressed air flow meters used in food and beverage plants, textile mills, chemical sites, and metal fabrication shops. A customer in Thailand checked branch lines feeding blow molding machines. He found two points pulling 14% and 18% more air than expected. That single field route covered 22 points in one shift.
Last year a customer in Vietnam asked us for a logging kit to audit a desiccant dryer. He wanted to know the purge air loss. The handheld meter logged CFM before and after the dryer for 24 hours. The data showed purge flow was 23% of rated capacity. He replaced the dew point sensor and reduced purge by half.
Setup and Probe Insertion
You do not need to cut the pipe. The probe inserts through a 1/2 inch or 3/4 inch ball valve. For pipes from DN15 to DN50, a fixed insertion depth works. For DN80 to DN300, an adjustable insertion probe gives better results. Our team can supply the correct probe length based on your pipe OD and insulation thickness.
The meter display is handheld and rated for field use. Battery life is about 10 hours. Logging interval can be set from 1 second to 1 minute. Storage is 16 GB. Accuracy is ±1.5% of reading plus 0.3% of full scale. Turndown is 100:1. Outputs include 4-20 mA HART and USB for data export.
Field CFM Logging Without Guesswork
Most engineers skip the baseline step. In practice, you should log the compressor room for 15 minutes before the route. Then check each branch line. Log each point for at

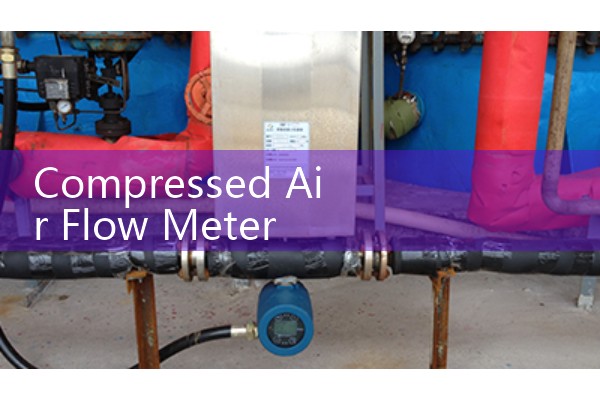

_600x400.jpg)
But here is the thing. Compressed air demand changes during a shift. If the end baseline is 9% higher than the start baseline, your branch readings cannot be compared directly. You need to normalize them. A good handheld CFM logger records time stamps, so you can align each point with the system load. We have seen this problem many times on sites with batch reactors.
Reading the Data
After the field route, connect the meter to a PC via USB. Export the data as CSV or Excel. No special software is required for basic trending. You can plot CFM against time. Look for sudden spikes. Those spikes often point to solenoid valve pulses or stuck drain valves. Look for flat high flow on idle lines. That often means a cracked fitting or an open bypass.
A compressed air audit with a portable flow meter pays back fast. One customer in the Philippines found three leaks on a weekend walk. Total leak flow was 41 CFM. At their local power cost, that was over USD 8,000 per year. They fixed the leaks in one day.
Common Questions About Handheld Compressed Air CFM Logging
Can the meter measure wet compressed air?
Moisture droplets can damage the thermal sensor. Install a water separator or use a dry gas. Dew point should stay below 40 °C at the measurement point.
What is the difference between CFM and SCFM?
CFM is actual volumetric flow at line conditions. SCFM is standard flow corrected to a reference pressure and temperature. Our handheld meter can display both if pressure input is enabled.
Can I use the same meter for nitrogen?
Yes. The meter has a gas selection menu. You can switch between compressed air, nitrogen, argon, and a few other gases. For mixed gas, send us the gas composition and we will set the correction factor.
Does the meter need calibration?
Yes. We recommend annual calibration. Silver Instruments can provide a calibration certificate traceable to ISO 17025. Normal calibration lead time is 5 working days.
What does a portable CFM logging kit cost?
Price depends on pipe size, probe length, pressure rating, and data logging features. A basic DN15 to DN50 kit costs less than a kit for DN150 lines with 16 bar pressure. Send us your pressure, temperature, pipe size, and flow range for a specific offer.
Get a Kit Quote from Silver Instruments
Tell us the compressed air pipe size. Standard range is DN15 to DN300. Include the line pressure in bar and the temperature in °C. Add the flow range you want to measure, for example 0 to 500 Nm3/h or 0 to 1500 CFM. If you have multiple points, send a simple list. We can supply one handheld logger with spare probe lengths.
Contact Silver Automation Instruments for pricing and delivery. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Tell us the country and the gas type. We respond within one business day.
