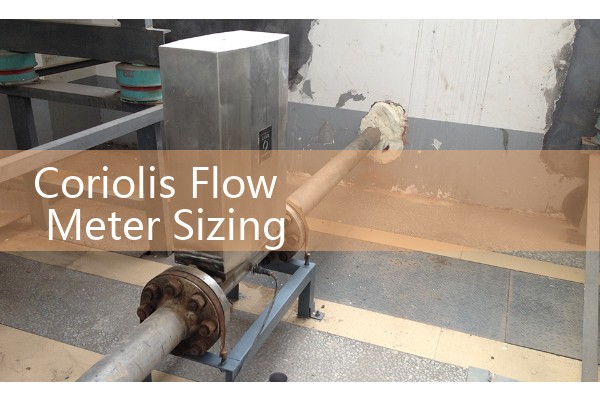

Coriolis Flow Meter Sizing: Turn-Down Ratio and Fluid Velocity Sourcing Selection Software
Quick Answer: Coriolis flow meter sizing starts with two values that engineers often overlook. They are turn-down ratio and fluid velocity. For most liquid process lines, keep velocity between 1 m/s and 10 m/s. Our sourcing selection software checks both values for DN15 to DN250 meters before we send a quote.
Why Turn-Down Ratio Changes Your Selection
Turn-down ratio is the range between minimum and maximum flow that a meter can measure within accuracy limits. A Coriolis meter with a 20:1 turn-down ratio on a 0 to 20000 kg/h span can still read 1000 kg/h accurately. Many mechanical meters lose accuracy below 15 percent of full scale. Coriolis meters from Silver Instruments hold accuracy over a wider span because mass flow sensing does not depend on Reynolds number alone.
Here is the thing. If your batching operation starts at 300 kg/h and peaks at 6000 kg/h, a 20:1 turn-down ratio is enough. If your plant also has a clean in place cycle at 50 kg/h, you may need a 40:1 or 100:1 turn-down ratio. We have seen this on customer sites in Thailand and Vietnam. A paint manufacturer in Southeast Asia selected a meter based only on maximum flow. During solvent flush, the meter became unstable because the velocity dropped below the minimum limit.
Fluid Velocity Limits and Pressure Drop
Coriolis meters measure mass flow directly. They do not need long straight pipe runs like vortex or ultrasonic meters. But velocity still matters. A very low velocity can cause signal noise. A very high velocity can damage the measuring tubes or cause erosion in abrasive fluids.
For water, a typical target is 1 m/s to 10 m/s. For gas, you can go higher because density is low. For slurries with sand or catalyst fines, keep velocity below 5 m/s. In practice, many engineers skip this part when they size a Coriolis meter. The selection software from Silver Automation Instruments calculates velocity for you based on flow rate, density, and DN size.
Pressure drop is another sizing factor. Although Coriolis meters add some pressure drop, it varies with fluid density and viscosity. A DN25 Coriolis flow meter sized for 5000 kg/h of water may produce about 0.6 bar pressure drop. If your pump only has 1.5 bar head, this matters. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a selection report.
Using Sourcing Selection Software for Coriolis Flow Meter Sizing
Many buyers ask for a Coriolis flow meter quote without viscosity, density, or gas pressure. The sizing selection software needs these inputs. Silver Automation Instruments uses a tool that checks flow range, fluid state, temperature, pressure, and connection size in minutes.
You enter the normal flow, maximum flow, and minimum flow. You also enter density or specific gravity. For gas, you enter molecular weight or process density. The software then filters sensor models from DN15 to DN250. It shows fluid velocity, pressure drop, and recommended model. This is not a basic calculator. It pulls data from the Silver Instruments product database.
Because purchasing managers in the Middle East and Latin America often need quick budget pricing, we keep this process simple. Send your data through WhatsApp or WeChat. A project engineer returns a model suggestion with a price range.
Model Pairing for Common Industrial Applications
For a 2 inch water line at 25 m3/h, a DN50 Coriolis mass flow meter works well. Fluid velocity is about 3.5 m/s. For a chemical dosing line at 300 kg/h of solvent with density 0.8 kg/L, a DN10 or DN15 sensor is often correct. The velocity target is between 2 m/s and 6 m/s.
A seawater desalination plant in Saudi Arabia asked us to size a high pressure brine line. The flow was 18 m3/h at 62 bar and 35 °C. We selected a DN25 Coriolis flow meter with titanium wetted parts. The turn-down ratio met the plant baseline of 3:1 with enough margin for low flow winter operation.
For crude oil custody transfer in a 4 inch line at 40 m3/h, a DN100 Coriolis meter handles the flow range. If the flow can drop to 5 m3/h during tank stripping, a higher turn-down ratio or a dual run configuration is necessary. Ask for a dual meter option if your min max flow ratio exceeds 20:1.
Turn-Down Ratio in Practice
Most Coriolis flow meter suppliers list turn-down ratio as a headline spec. A 20:1 ratio looks good on paper. In process control, a stable
Silver Automation Instruments configures meters with 0.1 percent of rate accuracy on liquids and 0.5 percent on gases. The low flow cutoff can be set to 0.2 percent of full scale on some models. That supports greater range than many volumetric meters.
Pressure and Temperature Ratings
Coriolis flow meter sizing is not only about flow. The sensor body must hold process pressure and temperature. We supply standard stainless steel 316L sensors for pressures up to 100 bar. For high pressure gas injection at 250 bar, a wall thickness upgrade or special alloy is needed.
Temperature affects the meter electronics and gasket selection. Standard models work from -50 °C to 200 °C. For ATEX Zone 1 gas metering, select a flameproof transmitter with 4-20 mA HART output. The sensor has a built in PT100 temperature element for mass and density compensation. For molten sulfur at 140 °C or bitumen at 180 °C, specify a remote transmitter. This keeps the electronics away from heat. For cryogenic LNG at -162 °C, a dedicated sensor with stainless steel or nickel alloy construction is required.
Accuracy, Density, and Process Conditions
Coriolis meters also measure density. This is useful for quality control in food and beverage plants. A juice concentration line in Australia used a DN25 meter to check Brix and mass flow at the same time. The density reading was sent via 4-20 mA HART to a PLC. No separate densitometer was needed.
For multi phase flow with entrained gas, a standard Coriolis meter may show unstable readings. The selection software should account for gas void fraction. If your medium contains more than 2 percent free gas, tell our engineers before ordering. We can set the meter for bubble handling or suggest a degassing line.
Sourcing from Silver Automation Instruments
Silver Automation Instruments supplies Coriolis mass flow meters, electromagnetic flow meters, ultrasonic flow meters, vortex flow meters, oval gear flow meters, thermal mass flow meters, pressure transmitters, and paperless recorders. We serve industrial end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
We know that a distributor in Chile may need a DN80 Coriolis flow meter for a mining slurry line. We also know that a water utility in the Philippines may need a battery powered magnetic flow meter for a remote bore. The sourcing selection software helps us respond to both types of requests fast.
For a Coriolis flow meter quote, send your pressure (bar), temperature (°C), pipe size (DN), and flow range. Our contacts are Tel: +86-25-68650347, WhatsApp: +86-25-52155837, and WeChat: +86 15365082610.
Frequently Asked Questions
What is the typical turn-down ratio of a Coriolis flow meter?
Typical Coriolis mass flow meters from Silver Instruments offer 20:1 to 100:1 turn-down ratio depending on the model and fluid. For most liquid batching and dosing jobs, 20:1 is enough. For applications with wide flow range, ask for 50:1 or 100:1.
What fluid velocity should I target for Coriolis meter sizing?
For liquids, target 1 m/s to 10 m/s. For slurries, keep velocity below 5 m/s to limit erosion. For gas, velocity can be higher because density is low. The sizing software checks this after you enter flow rate and DN size.
Can I use one Coriolis meter for both liquid and gas?
Yes, Coriolis meters measure mass flow independent of fluid phase. However, density differences change the signal strength and pressure drop. You must enter the correct process condition for each phase. Contact us if the same meter must run liquid and gas at different times.
What data do I need to send for a quote?
Send your flow range, pipe size, fluid name, density or specific gravity, process pressure, process temperature, and connection type. Send this to WhatsApp +86-25-52155837 or WeChat +86 15365082610.
Does Silver Automation Instruments offer selection software to customers?
We run the sizing and selection software for you. You send the process data. We return a model recommendation, velocity check, pressure drop estimate, and price range. This saves time for distributors and end users who do not want to learn a complex sizing tool.
