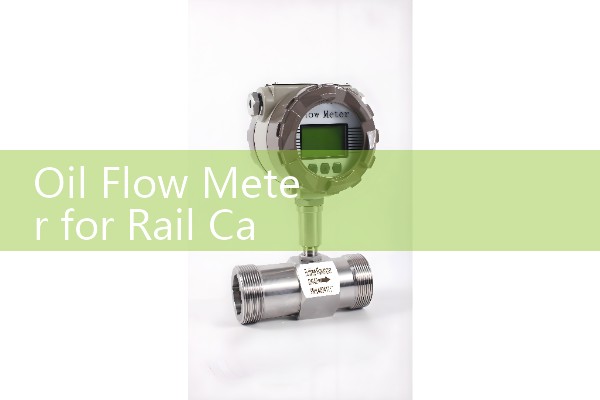

Oil Flow Meter for Rail Car Loading: High-Capacity Batching and Spill Prevention
Quick Answer: To load crude oil, diesel, or gasoline into rail cars safely and accurately, use a positive displacement oval gear meter or a Coriolis mass flow meter. These meters provide the pulse output and accuracy needed for batch control and overfill prevention. Silver Automation Instruments supplies both types with ATEX and full communication options.
Why Rail Car Loading Needs a Reliable Oil Flow Meter
Here is the thing. Not all flow meters can keep up with the speed of rail car loading. A typical tank car holds 60,000 to 100,000 liters. The flow rate often sits between 500 and 2,000 liters per minute. Any error in volume measurement leads to financial loss or a costly spill. Most engineers skip the cheap turbine meters and go straight for a meter that can handle fast batching and custody transfer.
We have seen this on customer sites many times. A terminal manager in a rush picks a meter based on price alone. The meter drifts after a few weeks of heavy use. Then the spill happens because the batch controller did not receive a clean pulse. Silver Automation Instruments designed our oil flow meters for this exact scenario.
Oval Gear vs Coriolis Meters for High-Capacity Batching
Two meter types dominate rail loading. Oval gear positive displacement meters are popular for diesel and heavy fuel oil. They measure volume by trapping fluid between rotating gears and counting pulses. One pulse can equal exactly one liter or 0.5 liter. This makes batching simple. A batch controller counts pulses and shuts a valve at the target volume. Oval gear meters work well with viscosities from 1 cP to over 100,000 cP. That range covers diesel (around 3 cP at 20 °C) and heavy bunker fuel.
Coriolis mass flow meters measure mass directly. They output mass in kg or tonnes and also give density and temperature. They cost more but eliminate volume correction to standard conditions. For crude oil loading where API gravity varies, a Coriolis meter gives a mass total that never drifts with temperature. Silver Instruments offers Coriolis meters in sizes up to DN150 for rail loading. The oval gear line goes up to DN200 for flows of 1,500 m³/h.
In practice, many terminals in Southeast Asia use oval gear meters for diesel and gasoline loading. Crude oil terminals in the Middle East often choose Coriolis meters because the product temperature changes a lot during the day.
Spill Prevention Starts with a Meter That Talks Fast
Preventing a spill means the meter must send a pulse for every small volume increment, typically 1 pulse per liter. If the meter updates slowly, the batch controller overshoots. That is how overfills happen. Silver Instruments oval gear meters output a high-speed, scalable pulse via a NPN or PNP sensor. Paired with a 4-20 mA HART output, you can also read instantaneous flow on your control room DCS. The HART signal can carry diagnostics and temperature from an integrated PT100. This gives you a second layer of protection.
For hazardous areas, our meters carry ATEX Zone 1
What Parameters to Send for a Quote
The right meter size depends on your maximum flow rate and pipe size. Standard pipe sizes for rail loading arms are DN80, DN100, or DN150. If you batch 100,000 liters in 30 minutes, you need a meter that can handle 2,000 L/min without losing accuracy. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will select the correct oval gear or Coriolis meter and propose a batch controller if needed. Contact us at [email protected], tel +86-135-1213-1526, WhatsApp 86-135-12131526, or WeChat +86 13512131526.
Real Scenarios from Customer Sites
Last year a fuel distributor in Vietnam upgraded from a turbine meter to a Silver Instruments oval gear meter on their rail loading skid. They load diesel at 800 L/min into rail cars. The turbine meter had worn bearings and gave a 2% error after six months. The oval gear meter held 0.2% repeatability over the same period. The terminal manager used the pulse output to tie into an existing batch controller. He also added a PT100 probe into the meter to compensate volume to 15 °C. No more disputes with the refinery.
Another customer in Nigeria loads crude oil into rail cars at a flow station. They use our Coriolis meter to record mass in kg. Because the pipeline temperature swings from 25 °C at dawn to 50 °C at noon, a volume meter needed constant correction. The Coriolis meter removed that step. The customer reports zero billing complaints for two years running.
Frequently Asked Questions
Q: Which meter type is best for diesel rail car loading?
A: Oval gear positive displacement. It gives a direct pulse per volume and handles diesel viscosity with high repeatability.
Q: Can I use a magnetic flow meter for oil?
A: No. Oil is non-conductive. A magmeter needs a minimum conductivity of 5 µS/cm, so it cannot measure hydrocarbons.
Q: How do I prevent spills with a flow meter?
A: Use a meter with fast pulse output connected to a batch controller. Set a two-stage shutoff with a primary cut at 98% of target volume and a final shutoff at 100%. The meter must not lag.
Q: Are these meters approved for custody transfer?
A: Silver Instruments oval gear and Coriolis meters meet OIML R117 or local metrology requirements. We can supply a calibration certificate traceable to national standards.
Q: What is the typical delivery time for an oil flow meter?
A: Standard meters ship in 2 to 3 weeks. Large sizes or custom materials may need 4 weeks. Express shipping to Southeast Asia and Oceania is available.
For a fast quotation, send your flow rate, pressure, temperature, and pipe size to [email protected]. Call +86-135-1213-1526 or message us on WhatsApp at 86-135-12131526. WeChat: +86 13512131526. See our oval gear flow meter for diesel and other fuel oils.
