1. The "Enemy of Interference" of Ultrasonic Flowmeters - Analysis of Common Interference Sources

Ultrasonic flowmeters face various interference factors in practical use, mainly divided into two categories: internal interference and external interference, which can affect measurement accuracy, equipment stability, and reliability. Internal interference mainly comes from the components or working characteristics of the flowmeter itself, including the following aspects: scaling on the inner wall of the pipeline. Sediments on the inner wall of the pipeline can change the propagation path of ultrasonic waves, leading to signal attenuation or abnormal reflection, and thus causing measurement errors. For example, in industrial pipelines that operate for a long time, scale or chemical deposits may cover the pipe walls, affecting the penetration of ultrasonic waves. Solution: Regularly use cleaning devices (such as high-pressure water jets or chemical cleaning agents) to remove sediment from the inner wall of the pipeline and restore the conditions for ultrasonic propagation. Solid particles or bubbles impurities (such as sediment, metal particles) or bubbles in liquid media can scatter or absorb ultrasonic signals, causing fluctuations or underestimation of measurement values. For example, in sewage treatment scenarios, suspended solid particles may interfere with the propagation path of ultrasonic waves. Solution: Install a settling device or filter to reduce the solid particle content in the medium. Use gas detectors to monitor bubbles and promptly remove them through exhaust devices. Fluctuations in power supply and unstable power supply voltage can cause abnormal operation of electronic components in flow meters

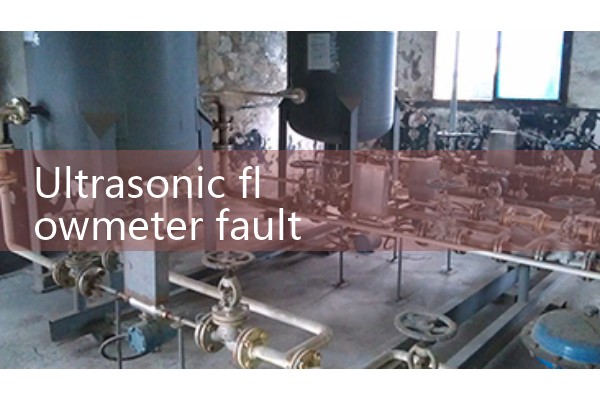

Troubleshooting of Ultrasonic Flow Meter

, such as signal amplifier output deviation or clock frequency drift, thereby affecting measurement accuracy. Solution: Install a power stabilizer at the power supply end to control the voltage fluctuation range within ± 1%, ensuring stable operation of the equipment. Figure: The impact of scaling on the inner wall of pipelines on ultrasonic propagation and schematic diagram of cleaning equipment. External interference mainly comes from the working environment of flow meters, including the following aspects: pipeline vibration. Pipeline vibration can cause changes in the relative position between ultrasonic transducers and pipelines, leading to signal phase shift or amplitude fluctuations. For example, flow meters installed near compressors or pumps are susceptible to vibration. Solution: Install an elastic compensator to absorb the vibration energy of the pipeline. Strengthen the pipeline support structure and reduce the resonance frequency. Changes in environmental temperature can alter the propagation speed of ultrasound in a medium (such as an increase in sound velocity with temperature), while also affecting the stability of electronic components parameters. For example, flow meters installed outdoors may experience measurement errors due to temperature differences between day and night. Solution: Adopt temperature compensation algorithm to correct the sound velocity value based on real-time temperature. Perform constant temperature control on electronic components to reduce temperature drift. Mechanical noise (such as equipment operation noise) or electromagnetic noise (such as interference from frequency converters) in noisy environments may mask ultrasonic signals and reduce signal-to-noise ratio. For example, in

Ultrasonic flowmeter fault handling | e h Ultrasonic flowmeter 93w reports e7 fault

1. The "Enemy of Interference" of Ultrasonic Flowmeters - Analysis of Common Interference Sources
