Chemical Transfer Pump with Flow Meter: Safe Dosing System Procurement Depots
Quick Answer: A flow meter on a chemical transfer pump reduces dosing errors and improves batch traceability. Silver Instruments supplies electromagnetic, Coriolis, and oval gear flow meters for acid, caustic, solvent, and polymer dosing systems. Send your chemical name, concentration, flow range, pipe size, and pressure to get a pump compatibility quote.
Most dosing skids fail not because of the pump but because the user cannot verify flow. Here is the thing. A pump curve tells you a theoretical rate. It does not tell you the actual rate after viscosity changes, backpressure shifts, or air pockets. Procurement teams for chemical depots in Southeast Asia, the Middle East, and Latin America now request flow meters as part of the pump package.
Flow Meter Types for Chemical Transfer Pumps
Electromagnetic flow meters work well for conductive liquids. Use a DN10 or DN15 body with PFA or PTFE liner and Hastelloy C electrodes. This covers acids, caustics, and salt solutions. The output can be 4-20 mA HART or pulse. A typical accuracy is 0.5 percent of reading.
Oval gear flow meters fit viscous chemicals such as polymers, resins, and oils. They operate at low flow rates and do not need conductivity. Choose PPS gears and FKM or EPDM seals for solvents. For food grade dosing, choose 316L gears and PCTFE bearings.
Coriolis mass flow meters serve non-conductive solvents and mass-based dosing. They measure kg/h directly and also give density and temperature. Use them for methanol, toluene, and other hydrocarbons where conductivity is too low for an electromagnetic meter.
Key Specifications for Procurement Depots
Start with pipe size. Most chemical dosing lines run DN10 to DN50. Flow range matters more than pipe size. A dosing line may run 0.5 to 30 L/h for additives or 100 to 2000 L/h for bulk transfer. State the minimum and maximum flow range. Include pressure in bar and temperature in degrees Celsius.
Then check wetted materials. Hydrochloric acid 32 percent needs PFA or PTFE. Sodium hydroxide 50 percent can attack glass electrodes. Choose Hastelloy C or titanium. Sodium hypochlorite 12 percent can form gas bubbles. An electromagnetic flow meter needs an empty pipe detection function.
For hazardous areas, order ATEX Zone 1 or Zone 2 versions. Ex ia or Ex d protection depends on the local installation code. Vapor from toluene or ethanol can reach Zone 1 in mixing rooms.
Recommended Models for Common Dosing Tasks
For acid dosing at 0.5 to 20 L/h, pair a diaphragm pump with a Silver Instruments EMF series electromagnetic flow meter. Use a DN10 PFA liner and Hastelloy C electrodes. The 4-20 mA HART sign

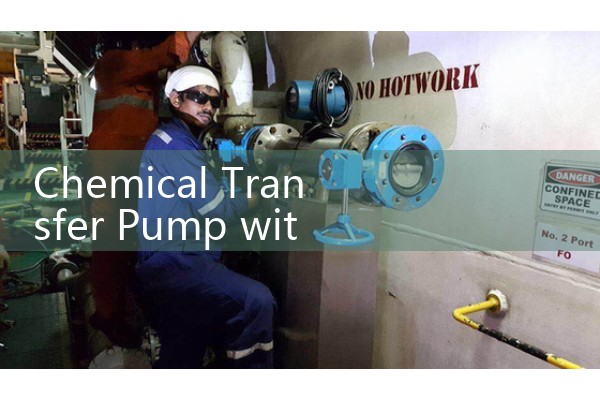

_600x400.jpg)
For solvent dosing in paint plants, pair a gear pump with an oval gear flow meter. Use PPS gears and FKM O-rings. This works for toluene, xylene, and butanone. Last year a paint manufacturer in Vietnam ordered 12 units for a new mixing line. The meters arrived within 12 days and the site team mounted them directly on the pump outlet.
For mass-based additive dosing, use a Coriolis meter. A food additive plant in Mexico uses a Silver Instruments CMF series meter to dose flavor concentrates. The meter records kg/h and total mass. It also checks density to catch a wrong batch before it reaches the mixer.
Installation Notes and ATEX Requirements
Install the flow meter after the pump and before the injection point. Keep enough straight pipe. For an electromagnetic meter, 5D upstream and 3D downstream is enough in most cases. For oval gear meters, put a strainer upstream to catch particles. For Coriolis meters, support the pipe to avoid vibration.
Do not run a flow meter dry. Chemical pumps can lose prime. Use a pressure switch or a low flow alarm. In practice, most engineers skip this part and then wonder why the meter reads zero. A simple 4-20 mA alarm at the PLC solves this.
FAQ
Q1: Can one flow meter handle both acid and solvent?
No. The wetted materials differ. Acid needs PFA or PTFE liner. Solvent may need PPS gears or stainless steel. Pick one meter per chemical family unless the chemical is compatible with both.
Q2: What flow range is typical for chemical dosing pumps?
Additive dosing often runs from 0.5 to 30 L/h. Bulk transfer runs from 100 to 2000 L/h. Give the minimum and maximum rate when you ask for a quote.
Q3: Do I need ATEX certification for a dosing skid?
If the chemical vapor can create an explosive atmosphere, yes. Request ATEX Zone 1 or Zone 2. Supply the gas group and temperature class to your supplier.
Q4: Can the flow meter send data to a PLC?
Yes. Use 4-20 mA HART, pulse, or Modbus RS485. For batch control, pulse output works well. For continuous dosing, 4-20 mA HART is common.
Q5: What information should I send for a fast quote?
Send chemical name, concentration, viscosity in cP, flow range, pipe size, temperature, pressure, and hazardous area class. Add the pump type and brand if you have it.
Send us your pressure in bar, temperature in degrees Celsius, pipe size in DN, and flow range in L/h. Include chemical name and concentration. Silver Instruments Tel: +86-135-1213-1526. Whatsapp: 86-135-12131526. WeChat: +86 13512131526. We respond within one business day with model selection and price.
