Water Meter Flow for Residential and Commercial Distribution Utility Main Valves
Quick Answer: For water meter flow in residential and commercial distribution utility main valves, electromagnetic flow meters are the most practical choice. They handle DN50 to DN400 pipes, achieve ±0.5% reading accuracy, and transmit 4-20 mA HART or Modbus data to SCADA. For shutdown free installation, use clamp-on ultrasonic flow meters on DN50 to DN1200 pipes.
Why Utility Main Valves Need Flow Metering
Utility main valves control flow in distribution lines that feed residential streets, commercial buildings, and industrial parks. Valve position alone does not tell the operator how much water is moving. Pressure changes, pipe scaling, and leaks shift flow even when the valve opening remains the same. A flow meter installed upstream or downstream of the main valve gives real data instead of a guess. In city water networks, district metered areas often use DN150 to DN400 electromagnetic flow meters to track water loss. A typical range is 50 to 1500 m3/h at 4 to 16 bar.
Meter Selection for Residential Distribution
Residential distribution lines often run at DN50 to DN150 with flow from 10 to 300 m3/h. Electromagnetic flow meters work well here because they do not block the pipe and have no filters to clean. Silver Instruments recommends the SUP-MF series with 4-20 mA HART output and a built-in totalizer. Use a remote display if the meter goes into a buried chamber. The local or remote display should show instantaneous flow, totalized volume, and reverse flow alarm. Some water utilities in the Middle East order battery powered electromagnetic meters for remote DMA zones. Battery life at one reading per 15 minutes is about 6 years.
Commercial and Utility Main Valve Applications
Commercial buildings such as hospitals, shopping malls, and office towers need flow data for billing and leak detection. Main valves in these buildings usually sit in basements where space is tight. An inline electromagnetic flow meter with DN40 to DN100 fits most of these jobs. For larger utility trunk mains, clamp-on ultrasonic flow meters can be used without cutting the pipe. Silver Instruments supplies the SUP-UF series for DN50 to DN1200. Accuracy is ±1.0% of reading. In practice, most engineers choose clamp-on meters when shutdown is not allowed. We have seen this on customer sites in Australia where a hospital main valve replacement had to be completed in one night. The clamp-on meter was installed in less than two hours.
Key Parameters for a Quote
To quote the right meter, we need pipe size, flow range, pressure, temperature, and output signal. For municipal water, pressure is usually 4 to 16 bar and temperature is 5 to 40 °C. Standard flanges are PN10 or PN16. Specify IP68 sensors if the meter chamber may flood. Request 4-20 mA HART plus pulse output for utility SCADA. Add a PT100 temperature input if the site needs temperature compensation for billin

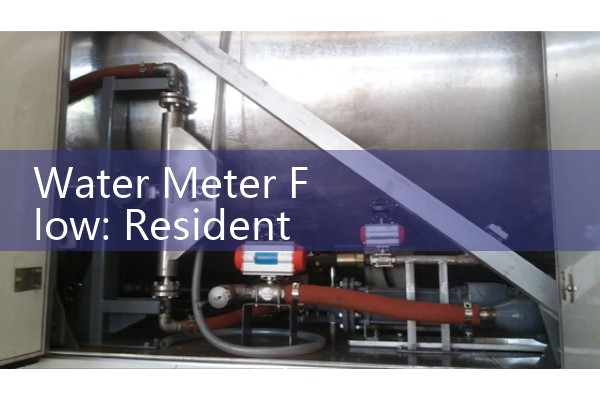

_600x400.jpg)
Installation Around Main Valves
Install the meter with proper straight pipe lengths. For electromagnetic meters, keep 5D upstream and 3D downstream. For clamp-on ultrasonic meters, keep 10D upstream and 5D downstream. Do not install the meter right after a partially closed main valve. The flow profile will be unstable. Place the meter before the valve or at a distance of 10 pipe diameters after the valve. Most engineers skip this part and then see unstable readings. If the main valve is used for pressure reducing, install the meter upstream of the valve. This keeps the meter full of water at a stable pressure. For custody transfer and billing, add a strainer upstream to catch debris from old cast iron or steel pipes. In Southeast Asia, many city networks still use old cast iron or asbestos cement pipes. Debris can damage meter electrodes.
Data Output and SCADA Integration
Utility main valves often connect to SCADA or a telemetry system. The flow meter should support 4-20 mA, pulse, RS485 Modbus RTU, and battery powered wireless options. Silver Instruments meters can send HART data to a PLC or remote terminal unit. For large distribution zones, use Modbus to read flow rate, totalized volume, and alarm status from up to 32 meters on one loop. For sites without SCADA, a paperless recorder can log flow, pressure, and totalized volume for 30 days. One water authority in Latin America used this setup on 24 district meters. The project reduced non-revenue water by 18 percent in one year. That is a real result from field data.
FAQ
Why choose electromagnetic flow meters for water distribution main valves?
They have no moving parts, handle low conductivity water, and measure bi-directional flow. Accuracy stays stable over time. They fit DN15 to DN1200 and suit billing applications.
Can I install a flow meter without shutting down the water line?
Yes. Use a clamp-on ultrasonic flow meter. It installs on the outside of the pipe. It works on metal and plastic pipes from DN50 to DN1200.
What flow range do residential distribution meters need?
For DN100 distribution lines, typical flow is 30 to 200 m3/h. For DN150 it is 50 to 450 m3/h. Confirm night minimum flow and peak demand before ordering.
Do you supply flow meters for billing and custody transfer?
Yes. We supply electromagnetic flow meters with accuracy of ±0.5% or ±0.2% for billing. They can include pulse output and tamper evidence.
What information do you need for a quote?
Send pipe size, flow range, pressure, temperature, signal output, and whether the meter is for buried or above ground use. We will reply with a model and price.
